EUROPA 8500 Thermo

EUROPA 8500 Thermo
EUROPA 8500 Thermo EUROPA 8500 Thermo

EUROPA 8500 Thermo

Code: []

350


Thermal break opening system

EUROPA 8500 Thermo series is a economical thermal break opening system with Camera Europea profiles and Camera Multilocking Mechanism profiles, provided with simple straight lines design.

It is designed in order to provide soundproof sliding systems with perfect thermal insulation, with an emphasis on functionality and contemporary style. The profiles have 20mm polyamide for thermal insulation.

EUROPA 8500 Thermo and EUROPA ESS 47 Thermo have a common aesthetic design and can be perfectly combined.

Wide range of accessories from the major European Companies covers every possible construction of the system.

Technical Characteristics of the EUROPA 8500 aluminium window :

  • Opening system. Optional Multilocking Mechanism.

  • Certified for air permeability, water tightness and wind resistance.

  • Additionally, certified for high thermal insulation Uf from 2,5 W/(m2K) according to Ift Rosenheim certification.

  • Sealing with three series of gaskets.

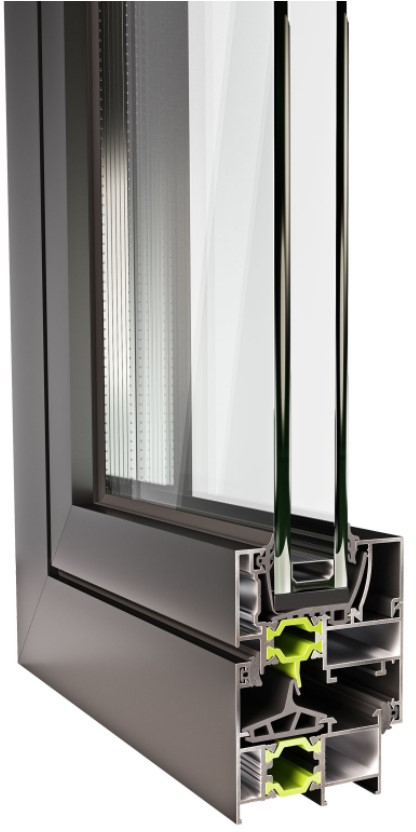

  • Thermal insulation of the profiles with the use of polyamides 20mm at sashes and guides

  • Use double or triple glasses up to 44mm in thickness.

  • USAGE: Opening system for doors and windows (titling or not) of any typology, fixed glazing, mixed constructions etc.).

Europa 8500-Aluminium-windows-doors-thermal-break-opening-system-certified



CONSTRUCTION TYPES

  • Entrance doors.
  • Opening (tilting or not) windows of any typology.
  • Fixed Glazing.
  • Mixed constructions.
  • Opening security windows for perimetric locking.

CERTIFICATIONS

  • QUALICOAT: Powder coating process certification.
  • ΕΚΑΝΑΛ: Certified factor for air permeability, water tightness and resistance to wind load.
  • IFT Rosenheim: Τhermal coefficient. Certified factor for air permeability, water tightness and resistance to wind load.
  • DTI: Τhermal coefficient.

Key features of the EUROPA 8500 aluminium window:

  • Straight line design.
  • Three sizes of sashes (small, medium, large).
  • Three sizes of frames (small, medium, large).
  • Three rows of rubber between the frame and sash providing ultimate sealing.
  • 44mm (maximum) double or triple glass for better thermal and sound insulation.
  • Safety profiles using perimetric locking mechanism for maximum security.
  • Specially designed gasket perimetrically of the glass for optimum thermal insulation and waterproofing.
  • Combined with EUROPA 8000 Thermo for complex structures.
